Best Available Critical Valve Monitoring Solution Delivering
Maximum Diagnostic Coverage

Valve Condition and Performance Monitoring Enters a New Era


V-MAP® The System

V-MAP® G3 dedicated sensors are located on the valve, actuator and on the adjacent piping. The sensor types typically selected are:

  • Acoustic Emission leak detection and quantification sensors
  • Strain gauges to monitor the torque or force required by the valve
  • Pressure transmitters to monitor the actuator fluid power requirement
  • Position transmitter to monitor the valve stroke

The V-MAP® G3 sensors are continuously logged by bespoke data acquisition units (MIDAS® DAUs). On detection of a valve operation, the V-MAP® G3 server either directly outputs results in standalone installations, or - in fully integrated installations – it downloads the information from the MIDAS® DAU and typically requests the following input from the installation’s automation databases:

  • Process pressures and temperatures
  • Actuator limit switch and solenoid status and timestamps
  • ESDV event timestamps

Once the server has collected the raw data from the various sources, it is processed in the Score bespoke Signal Processing Unit (MIDAS® SPU) and stored. The following functions can then be performed to transform the data in to information:

  • Manipulation to obtain derived data
  • The derived data is then analysed by use of proprietary V-MAP® software, with algorithms for:
    • Raising of alerts if performance characteristics exceed pre-set alarm or notification levels
    • Comparison and trending with previous readings, benchmarks and design calculations
    • Comparison of sensor outputs to detect sensor drift or malfunction
    • Provision of summary reports

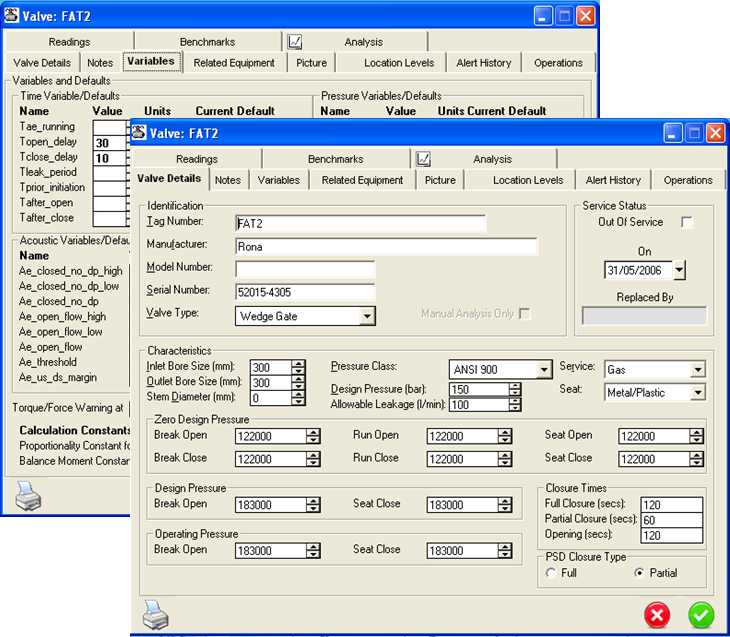

Example Of VMAP G3 Software

Click to Enlarge

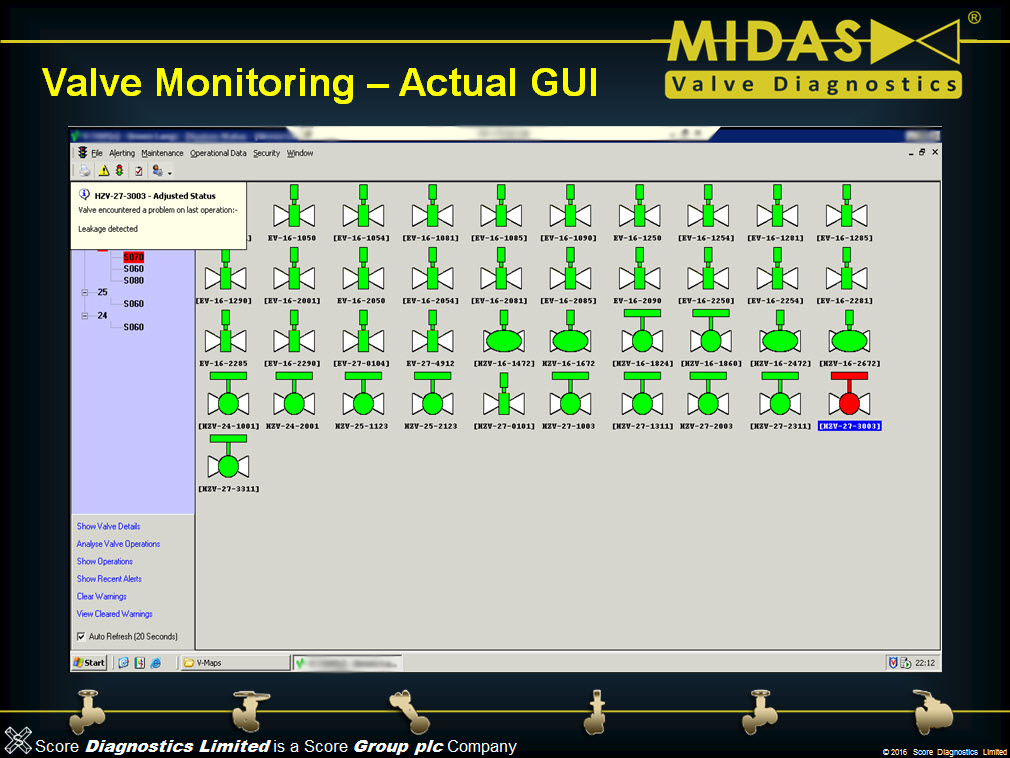

VMAP G3 Valve Condition And Performance Monitoring System

Click to Enlarge

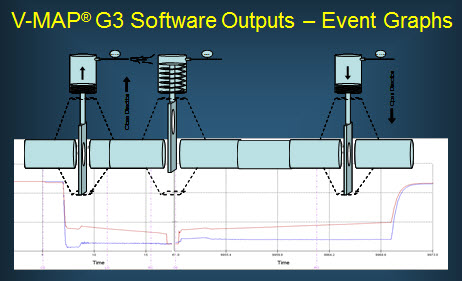

VMAP G3 Software Outputs

Click to Enlarge

Example Of VMAP G3 Software
VMAP G3 Valve Condition And Performance Monitoring System
VMAP G3 Software Outputs
